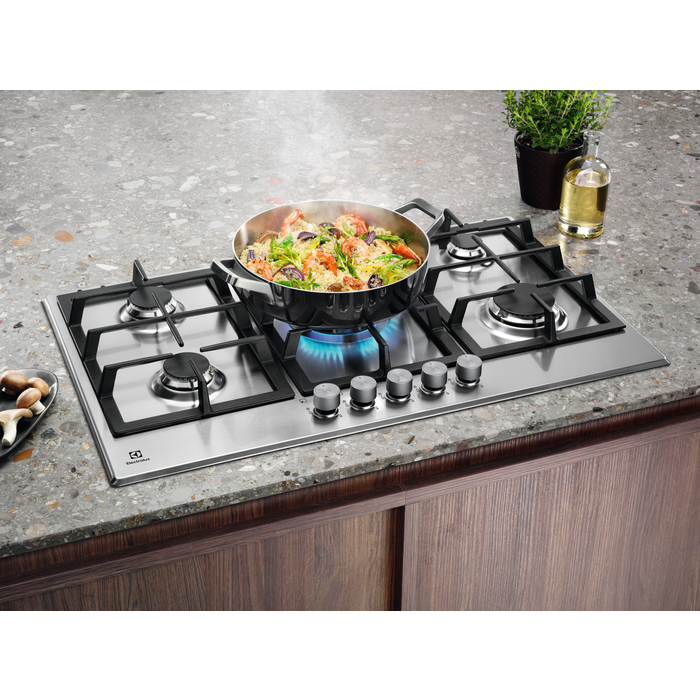

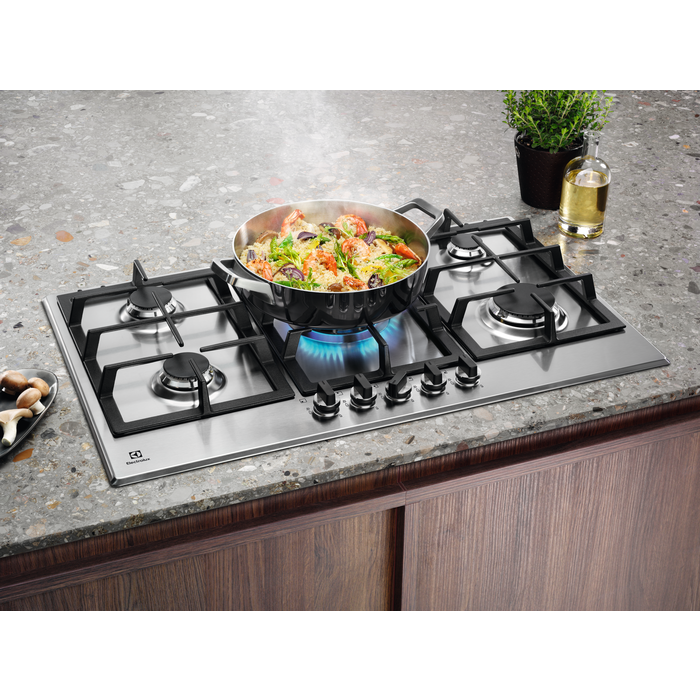

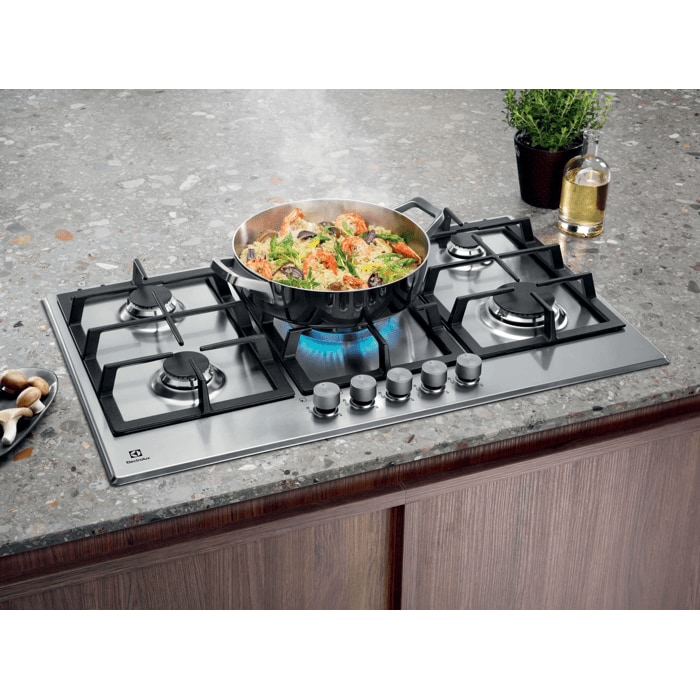

Product in a room environment

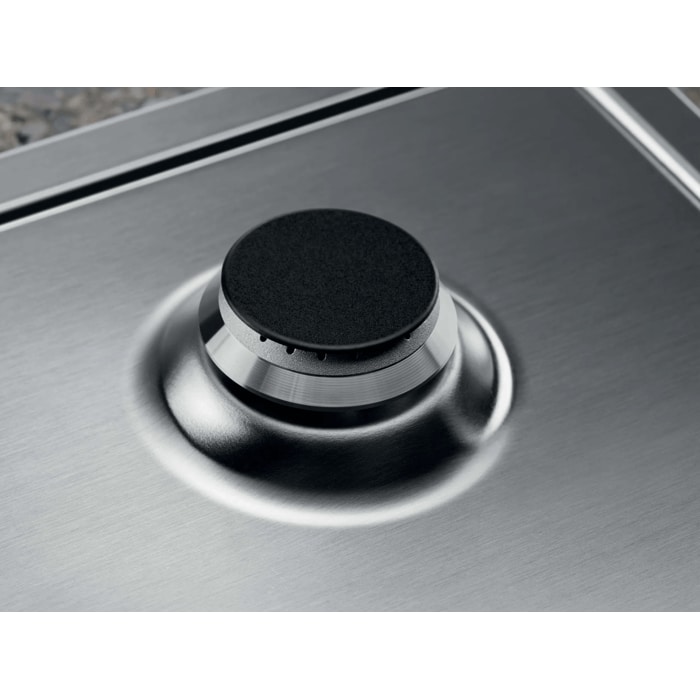

Product Detail

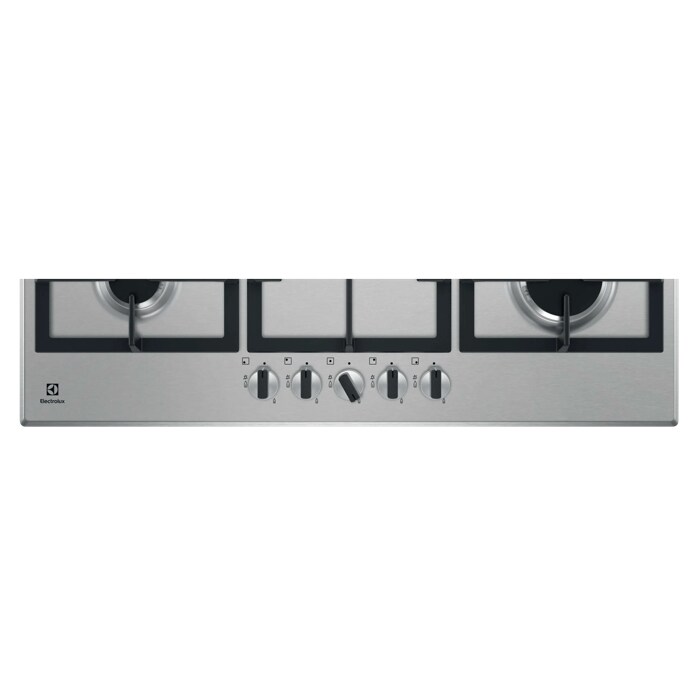

Product Detail
+8
  • Safety instructions and safety warnings according to EU regulation 2023/988 are listed in chapter 1 and 2 of the user manual. For safe use of the product read the full user manual.

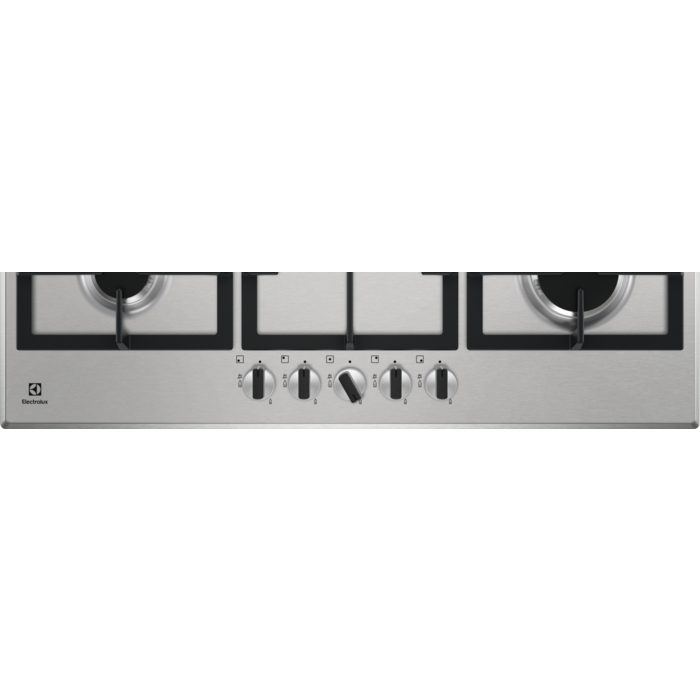

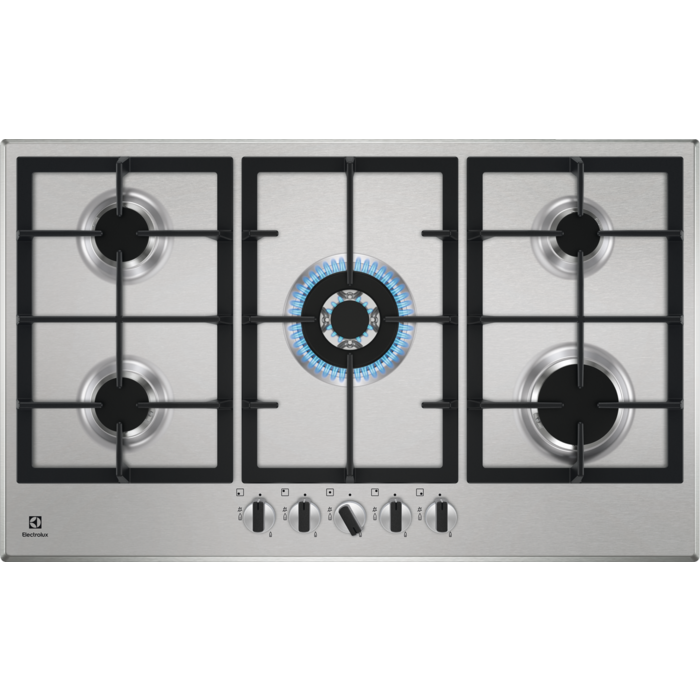

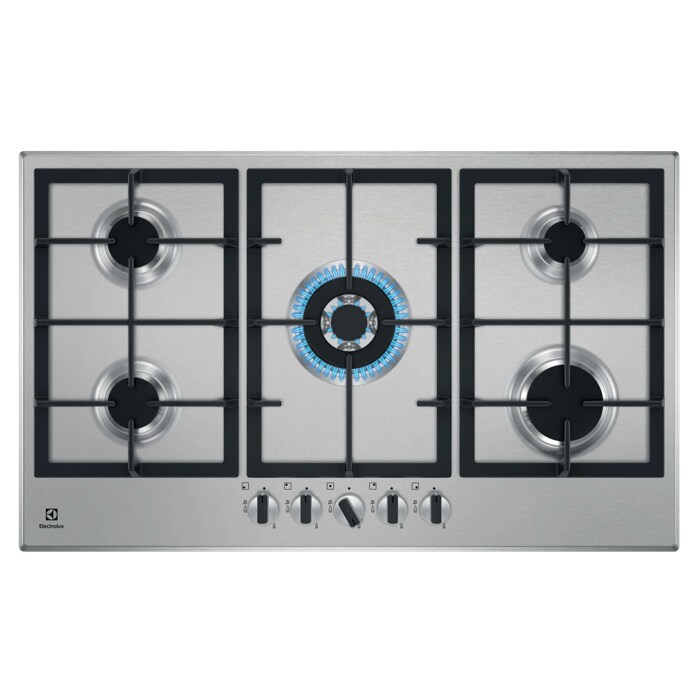

KGS9536X

Slim line Gas hob 90cm

0 (0)
Product information sheet
GalleryDetailsBenefitsAccessoriesReviewsSupport
Width (mm)857
Cooking Zones5
Powerful Burner (WOK)Yes
Hob-Pan SupportCast Iron

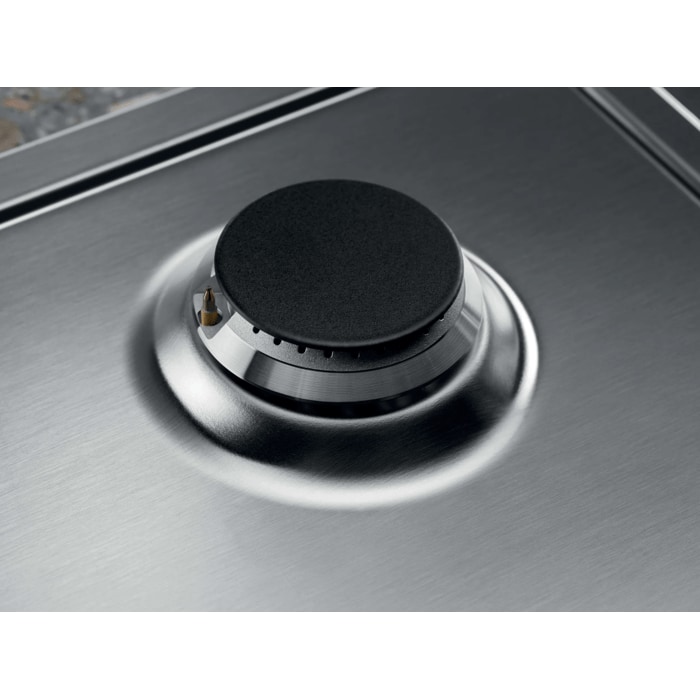

Speed Burner
Speed Burner
Powerful Wok
Powerful Wok
Main ColourStainless Steel
Plug or HardwiredUk Moulded Plug
Dimensions (mm) (WxD)857x520
Built-in Dimensions (mm) (HxWxD)60x830x480
Cord Length (m)1.1
LED ColourN/A
Left Front - Power/Diameter1900W/70mm
Middle - Power/Diameter4000W/128mm

Do you already own this product?

  • Everything you need in one place
  • Easy access to user manuals and guides
  • Smoother support and service
  • Special offers and discounts
Join MyElectrolux

Product documents

specification sheetDownload PDF
user manualDownload PDF
product information sheetDownload PDF

Installation specifications

Installation chartOpen image
Specification

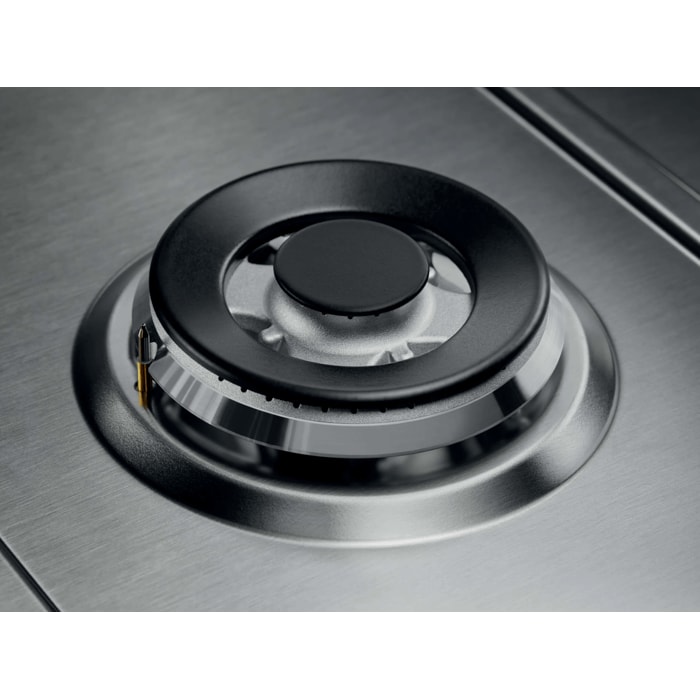

  • Safety first with thermocouples, if the flame fails gas is cut off automatically.
  • Cast Iron Pan Supports: Equipped with silicone feet for enhanced stability, preventing tipping or slipping.
Performance
  • Left Front - Power/Diameter: 1900W/70mm
  • Middle - Power/Diameter: 4000W/128mm
  • Right Front - Power/Diameter: 3000W/100mm
  • Left Rear - Power/Diameter: 1900W/70mm
  • Right Rear - Power/Diameter: 1000W/54mm
  • Pan Support Type: 3, Cast Iron
  • Number of cooking zones: 5
  • Max Power Gas (W): 11800
  • Hob Energy type: Gas hob
  • Hob Safety: Thermocouple
Installation
  • Plug or Hardwired: Uk Moulded Plug
  • Dimensions (mm) (WxD): 857x520
  • Built-in Dimensions (mm) (HxWxD): 60x830x480
  • Cord Length (m): 1.1
  • LED Colour: N/A
  • LPG Conversion Kit Included: G30/G31 (3+) 28-30/37 mbar; With Additional Injectors
  • Net weight (kg): 13.3
  • Gross weight (kg): 14.6
Other
  • Product number (PNC): 949 750 928
  • Main Colour: Stainless Steel
  • Control Type: Knobs
  • Gas Supply: Natural Gas: G20 (2H) 20 mbar
  • Frame Type: No
  • Wok burner: Yes
  • Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Cook multiple meals at once

Prepare several dishes at once with the five zones on your hob. Great for when you have guests over for a large brunch, or even a celebratory feast in the evening. Meaning that all your occasions effortlessly catered for.

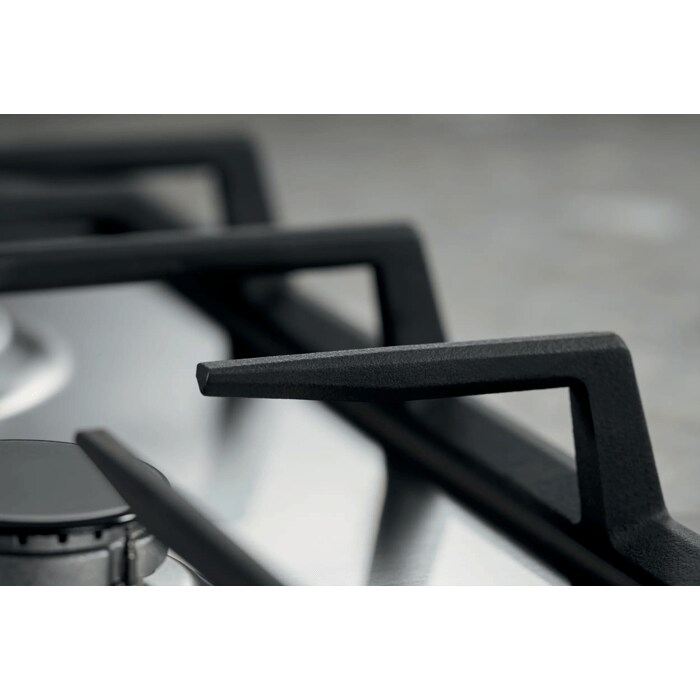

Robust, long-lasting support when cooking, for every meal

This gas hob features high-quality cast-iron pan supports. With such sturdy supports, you will have a robust and stable base for cooking, for a long time to come.

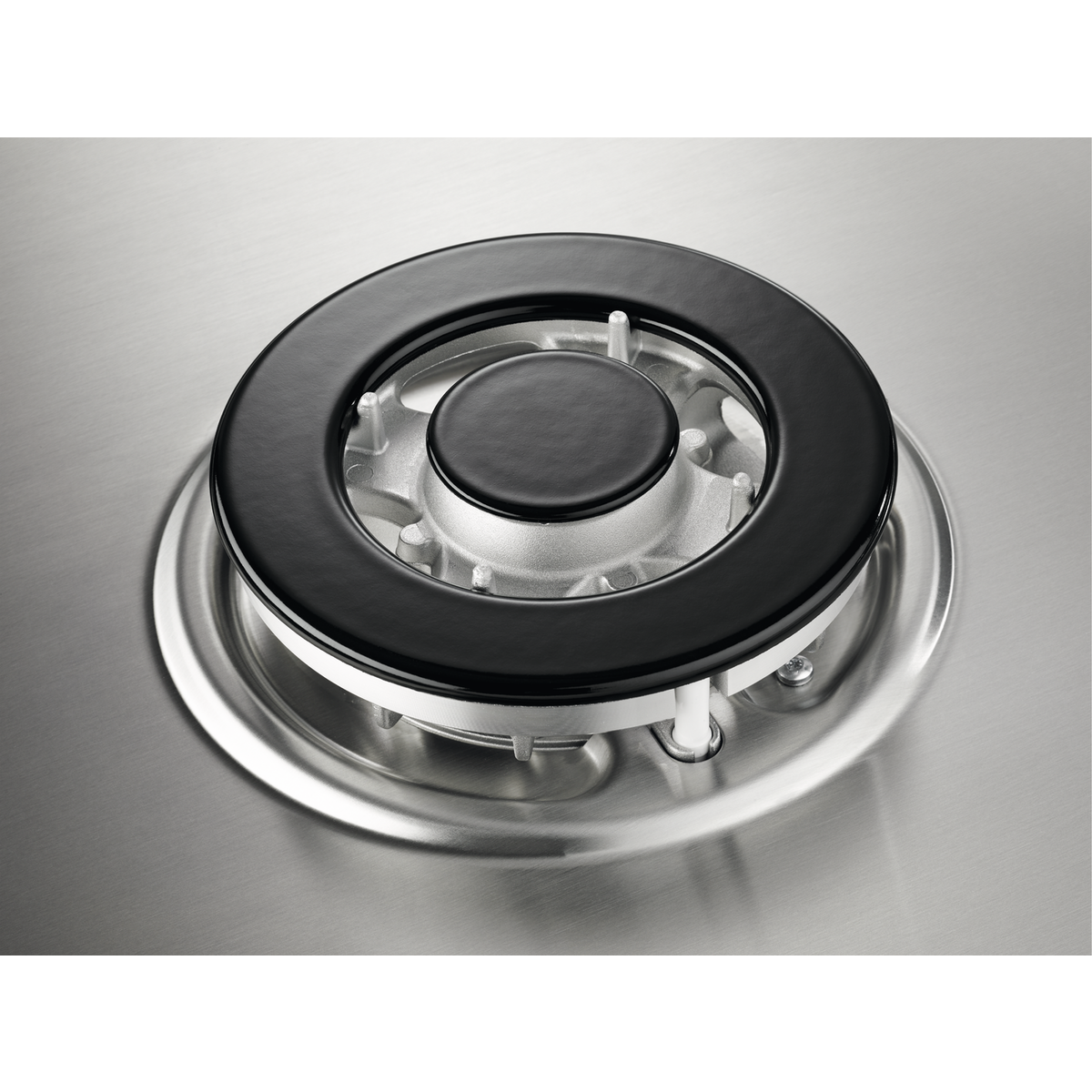

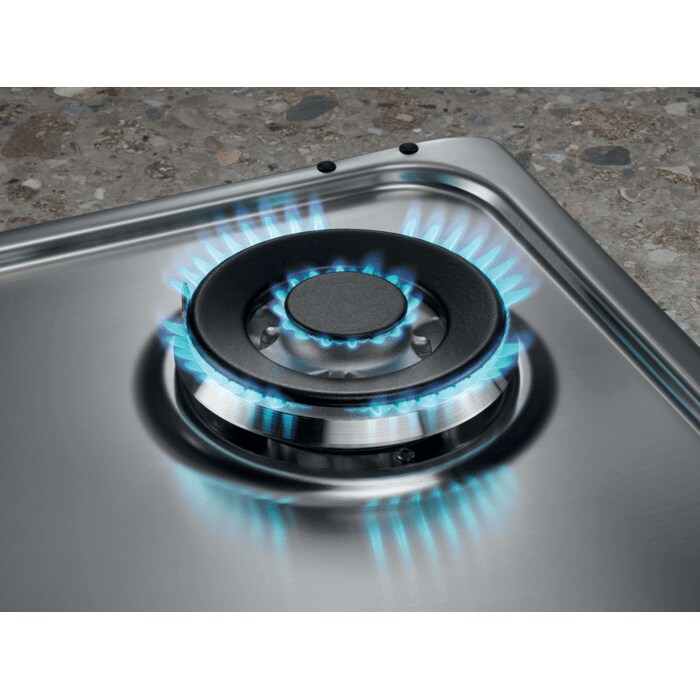

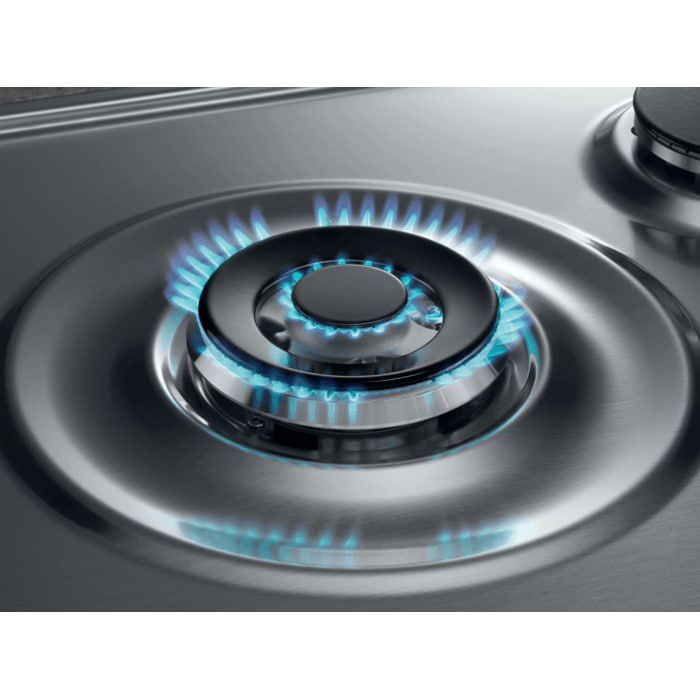

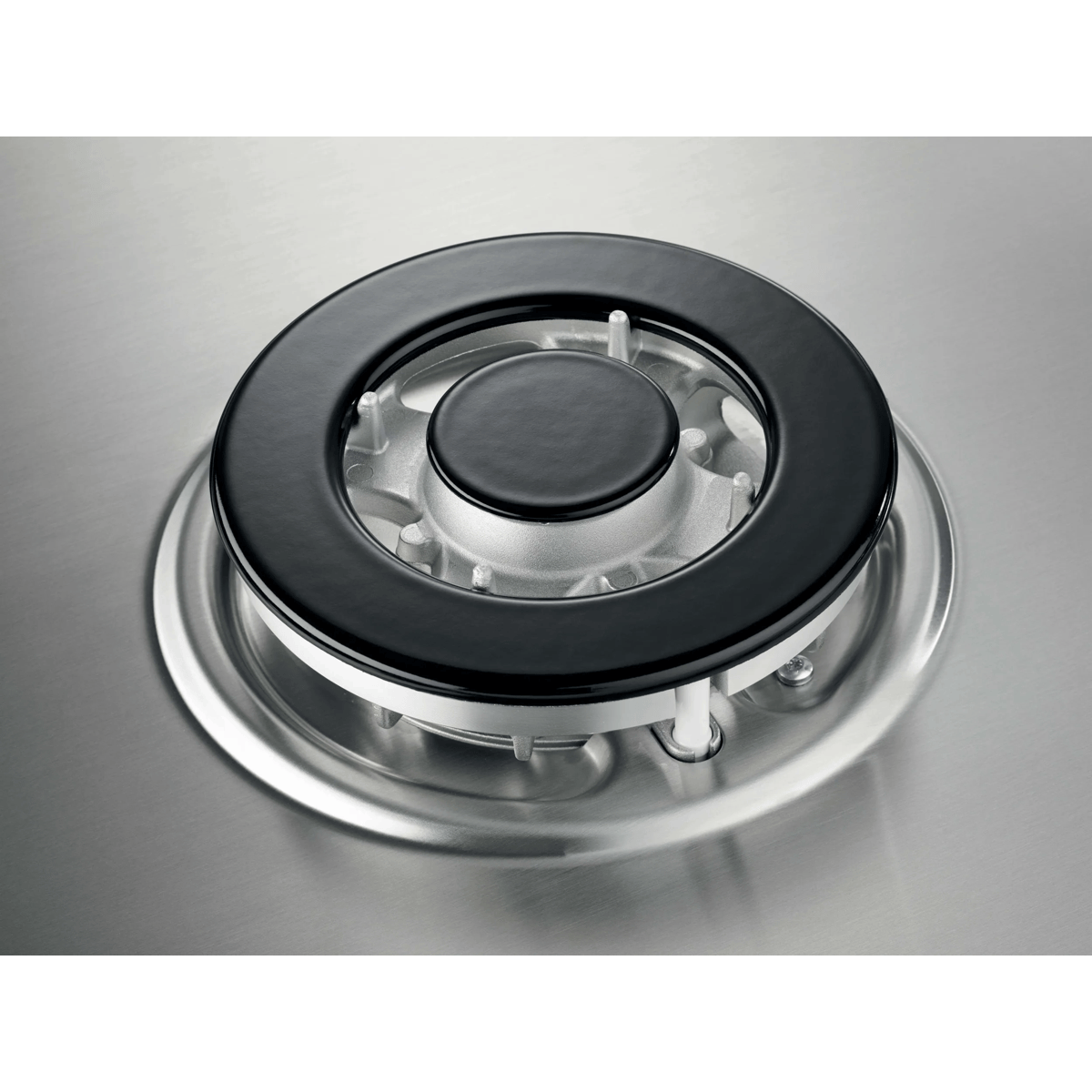

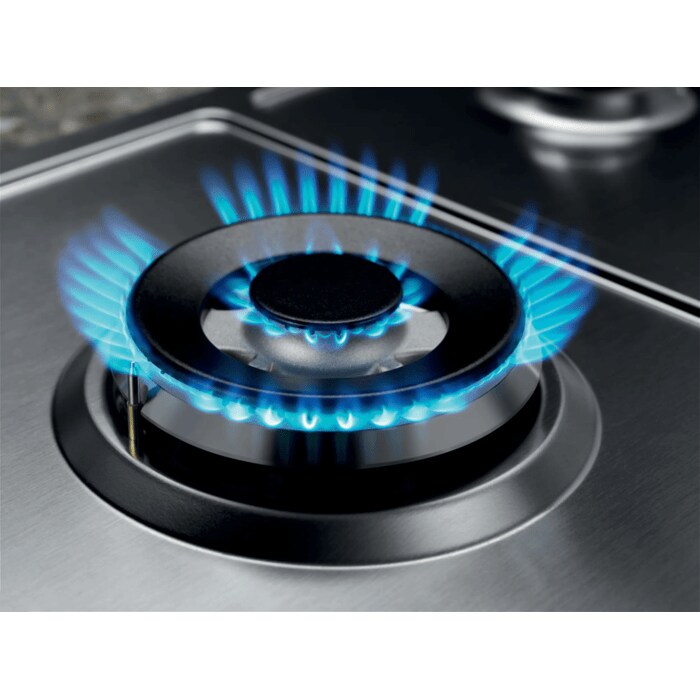

That super-intense heat you need for wok cooking

Thanks to the high-power triple-crown burner on this hob, you can create an extremely intense flame. It's exactly the kind of heat you need for wok cooking.
