LCC83443

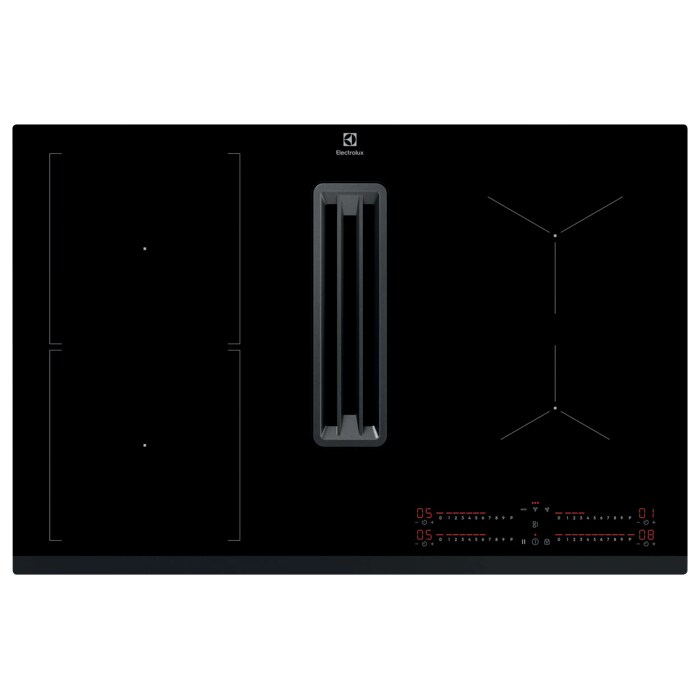

600 Induction ExtractorHob 80 cm

Name: 600 Induction ExtractorHob 80 cm
Brand: Electrolux
SKU: LCC83443

Product information sheet

Frame TypeBevelled 1 Side

Dimensions (mm) (WxD)780x520

Built-in Dimensions (mm) (HxWxD)205x750x490

Air Outlet (mm)220

Grease Filter TypeCombined Aluminium mesh

Number of Grease Filters2

Aperture Cut Out (mm)5

Energy RatingA+

Product documents

specification sheetDownload PDF

user manualDownload PDF

energy labelDownload PDF

product information sheetDownload PDF

installation GuideDownload PDF

Installation specifications

Installation chartOpen image

Specification

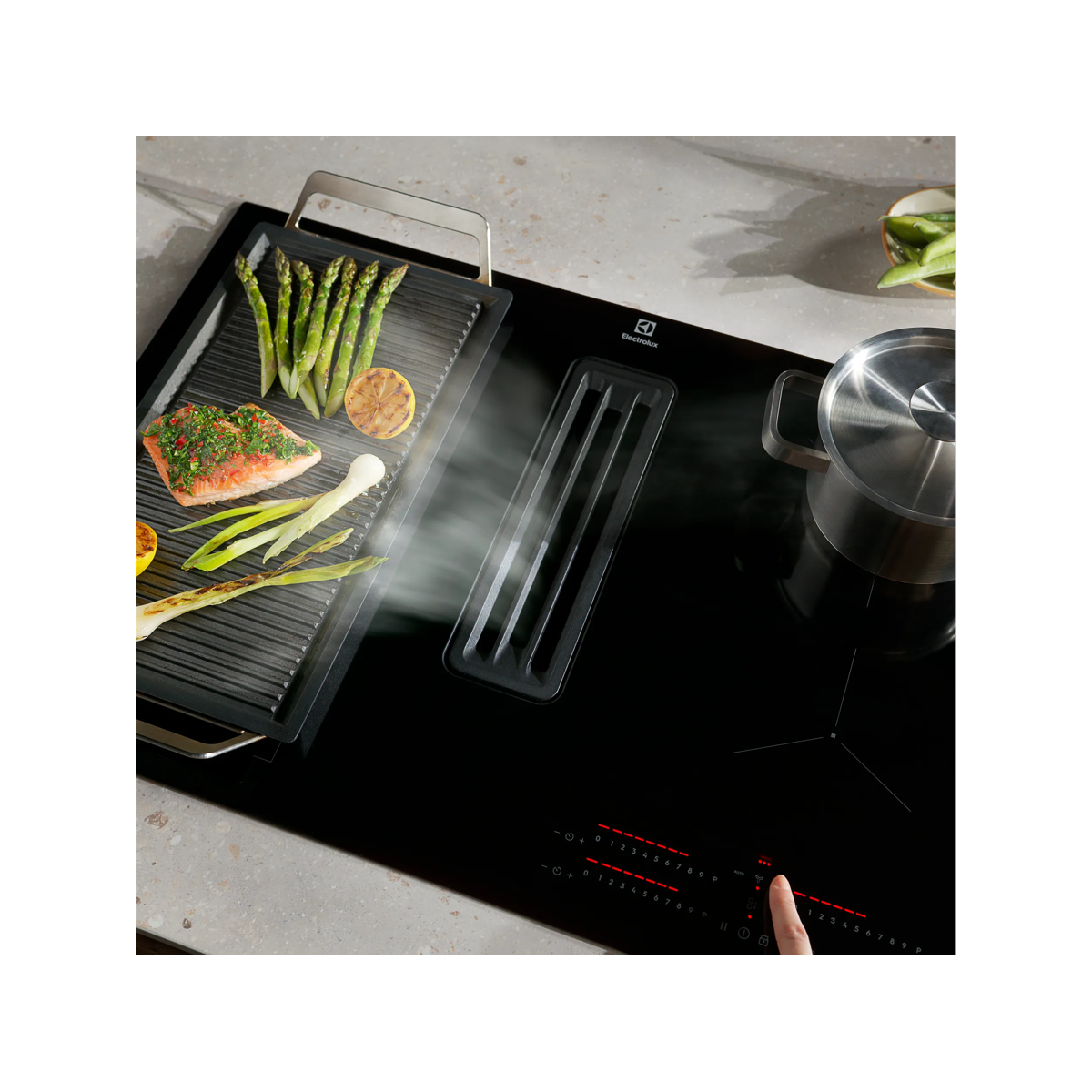

ComboHob: 2-in-1 combination of hob and extractor fan.
Residual heat indicators: Show when the hob surface is still hot after use.
PowerBoost: Gives an instant increase in temperature allowing water to boil in less than 90 seconds.
Child lock safety function.
Auto safety switch off: The power automatically turns off if a cooking zone is left on for too long.
Bridging function: Combines 2 cooking zones allowing flexibility for any size pan.
Inverter motor
Grease filter indicator.
Charcoal filter indicator.
Grease filter type and number: Combined Aluminium mesh, 2
Minute minder: Set the minute minder to remind you which dishes have finished cooking.
EcoTimer™: Saves energy by using the residual heat from the hob, turning off the cooking zone before the end of your timer to boost efficiency.
Automated extraction: Auto mode adjusts the extractor fan based on hob temperature changes, so you can focus entirely on cooking.
Pause functionality allows you to take short breaks without losing your cooking settings.
Metal grease filter: Traps grease, reducing odors, purifying air, and boosting performance. It's dishwasher safe and never needs replacing.

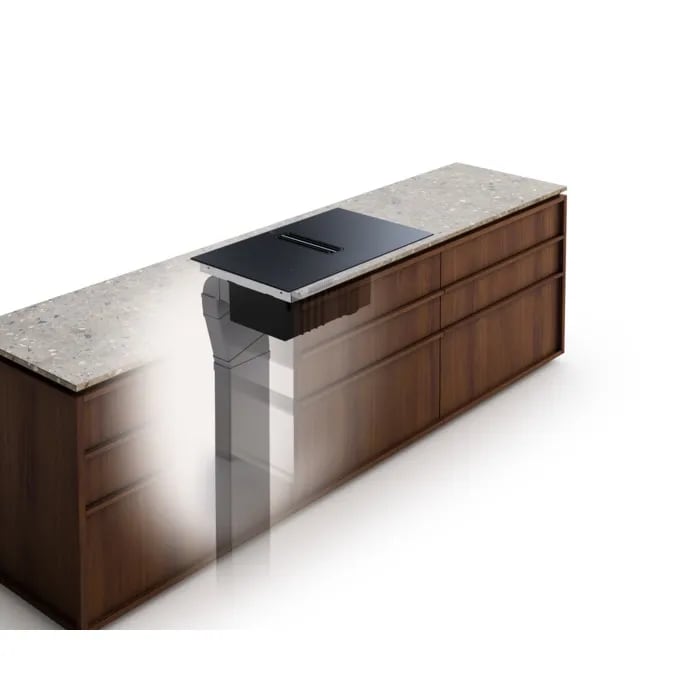

Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odours.

Performance

Grease Filter Type: Combined Aluminium mesh
Number of Grease Filters: 2
Left Front - Power/Diameter: 2300/3200W/210mm
Left Rear - Power/Diameter: 2300/3200W/210mm
Right Front - Power/Diameter: 1400/2500W/145mm
Right Rear - Power/Diameter: 1800/2800W/180mm
Number of cooking zones: 4
Hob Energy type: Induction ExtractorHob
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 630/500/260
Hob2Hood Connection: Yes

Installation

Dimensions (mm) (WxD): 780x520
Built-in Dimensions (mm) (HxWxD): 205x750x490
Air Outlet (mm): 220
Aperture Cut Out (mm): 5
Cord Length (m): 1.5
Plug or Hardwired: Hardwired connection only
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): No
Net weight (kg): 18.44
Gross weight (kg): 24.6

Energy

Energy Rating: A+
Fluid Dynamic Efficiency Rating: A
Grease Filter Efficiency Rating: B

Other

Product number (PNC): 949 599 320
Frame Type: Bevelled 1 Side
Motor Type: Brushless
Bar Code: 7333394040882
Series: 600
Recirculated Extraction Rate - Min/Max/Intensive (m³/h): 250/465/575
Ducted Noise Level - Min/Max/Intensive (dB): 48/64/69

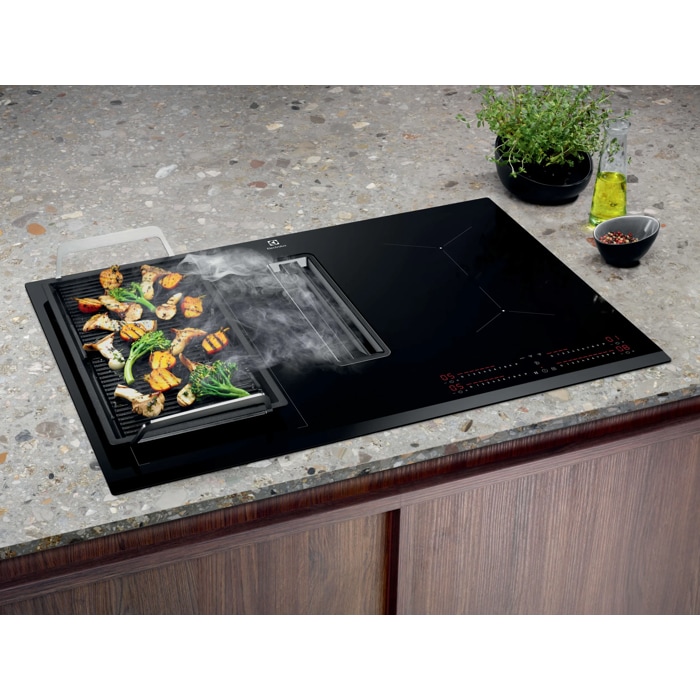

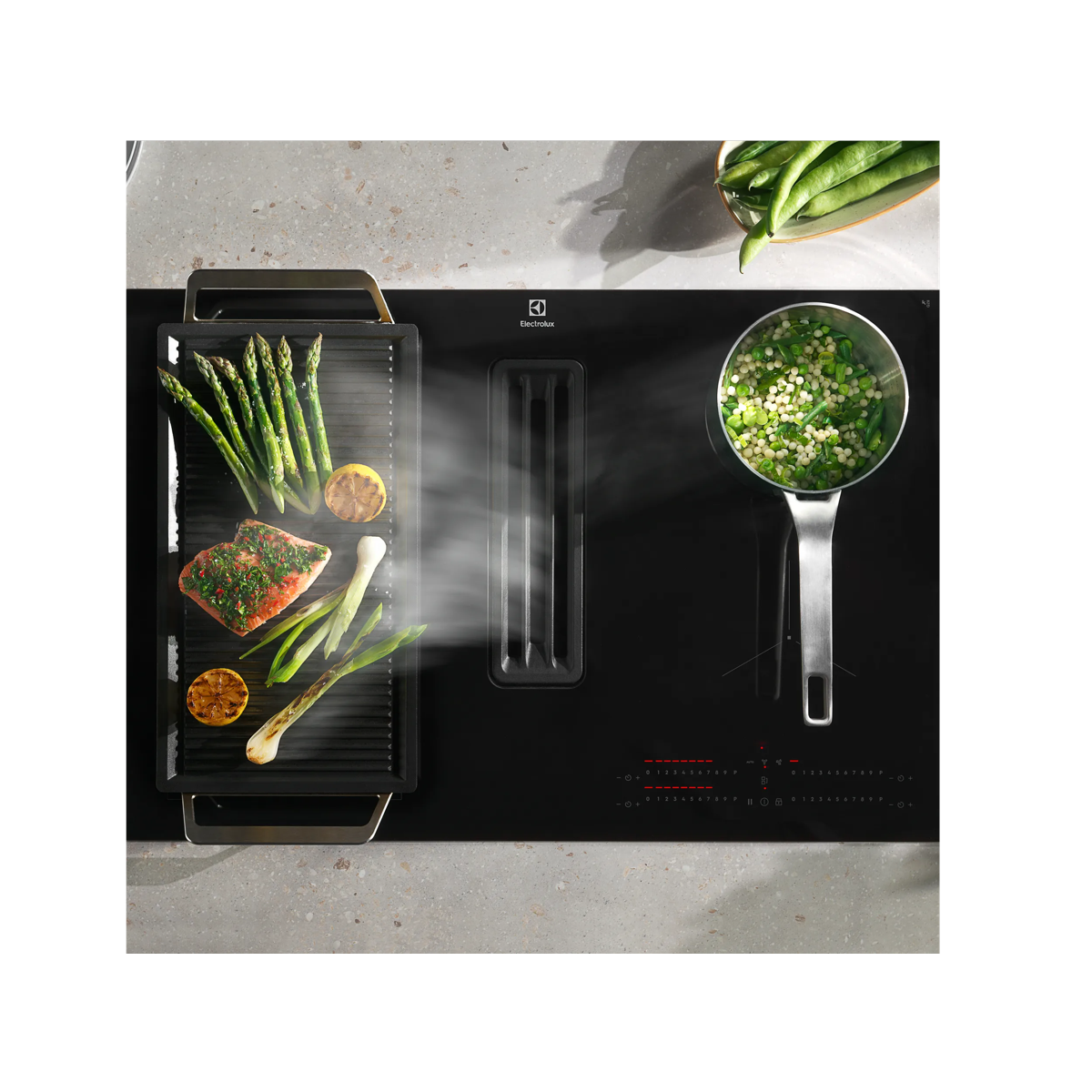

Merge zones for more room with the Bridge function

The Bridge function lets you combine two separate cooking zones to create a single large surface. With the temperature and time settings automatically aligned, it's ideal for making the most of planchas or roasting pots.

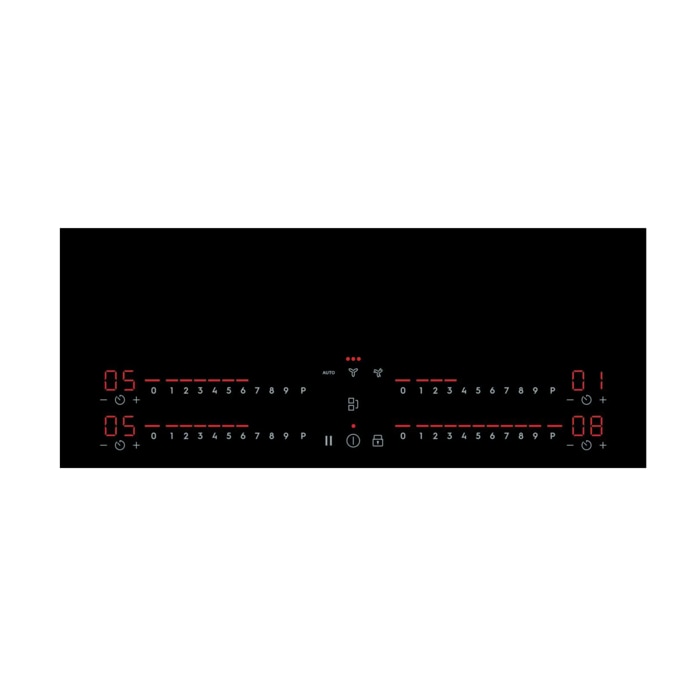

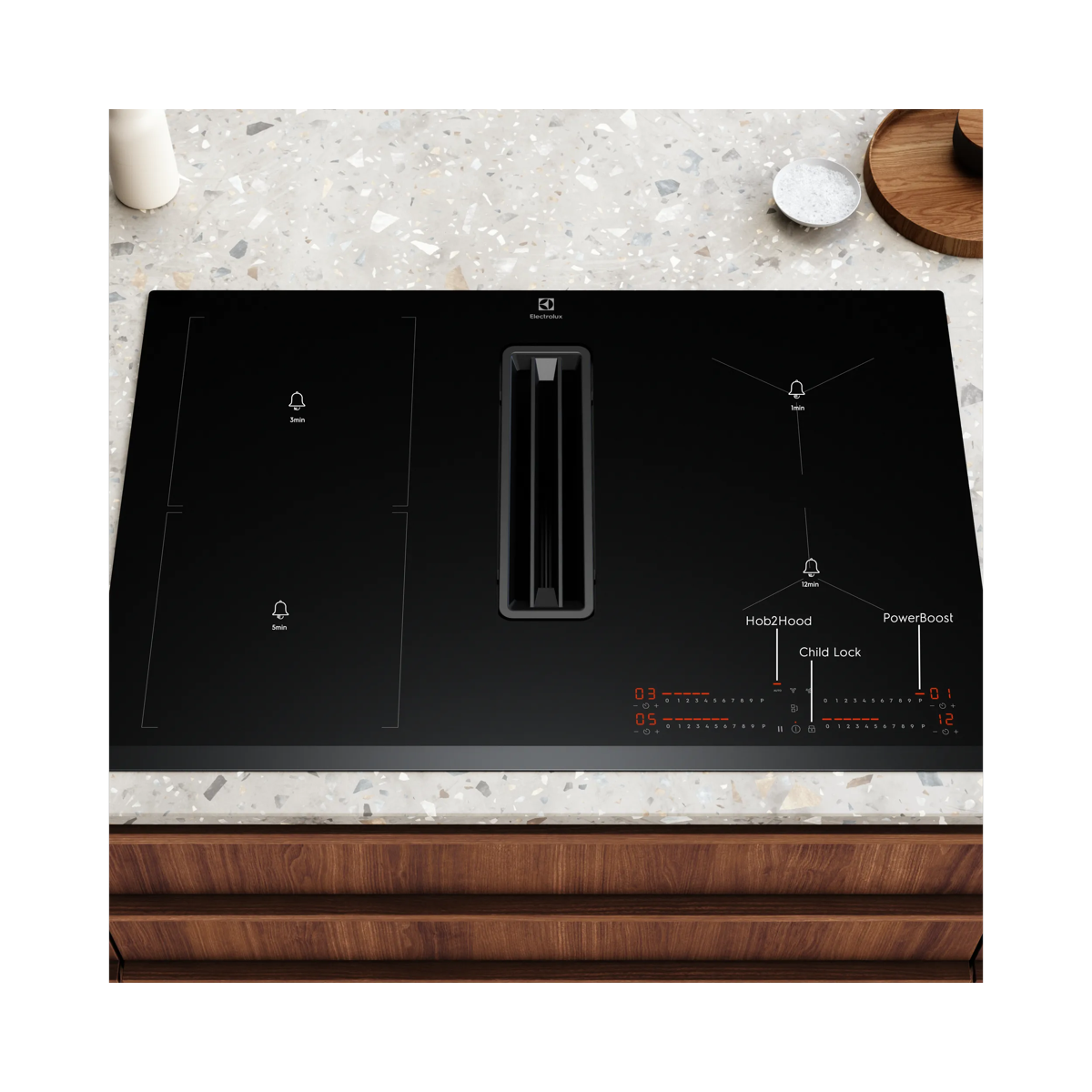

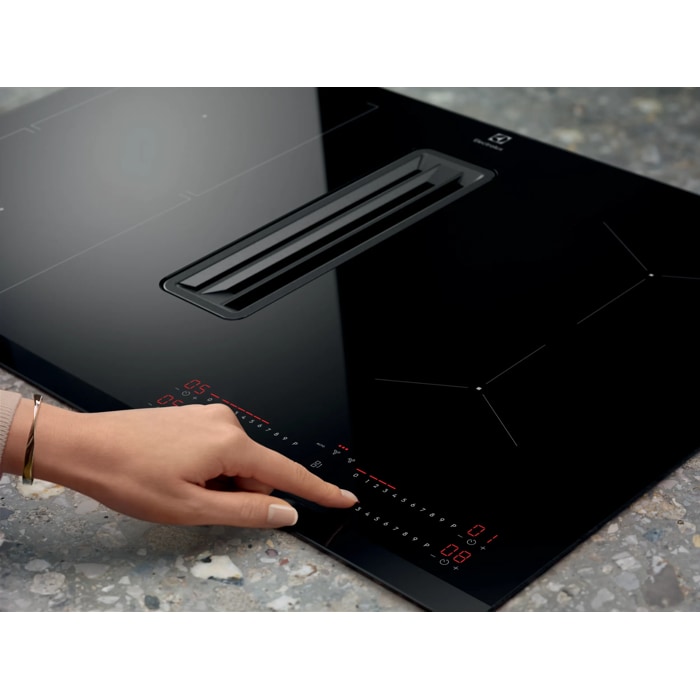

4 Individual Zone Controls for greater command when you cook

Easily command 4 different cooking zones and set separate timers for each with 4 Individual Zone Controls. Each zone has 9 power levels, with other functions including power boost, active touch, child lock and hob2Hood control.

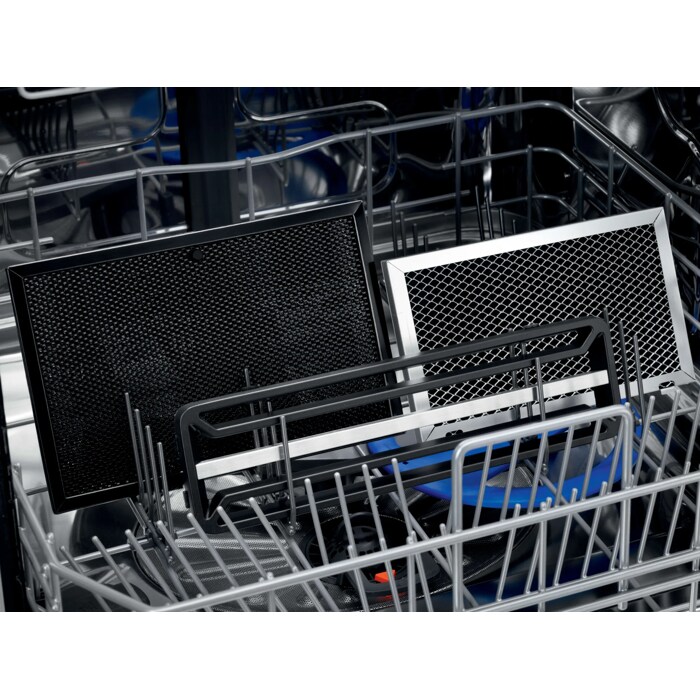

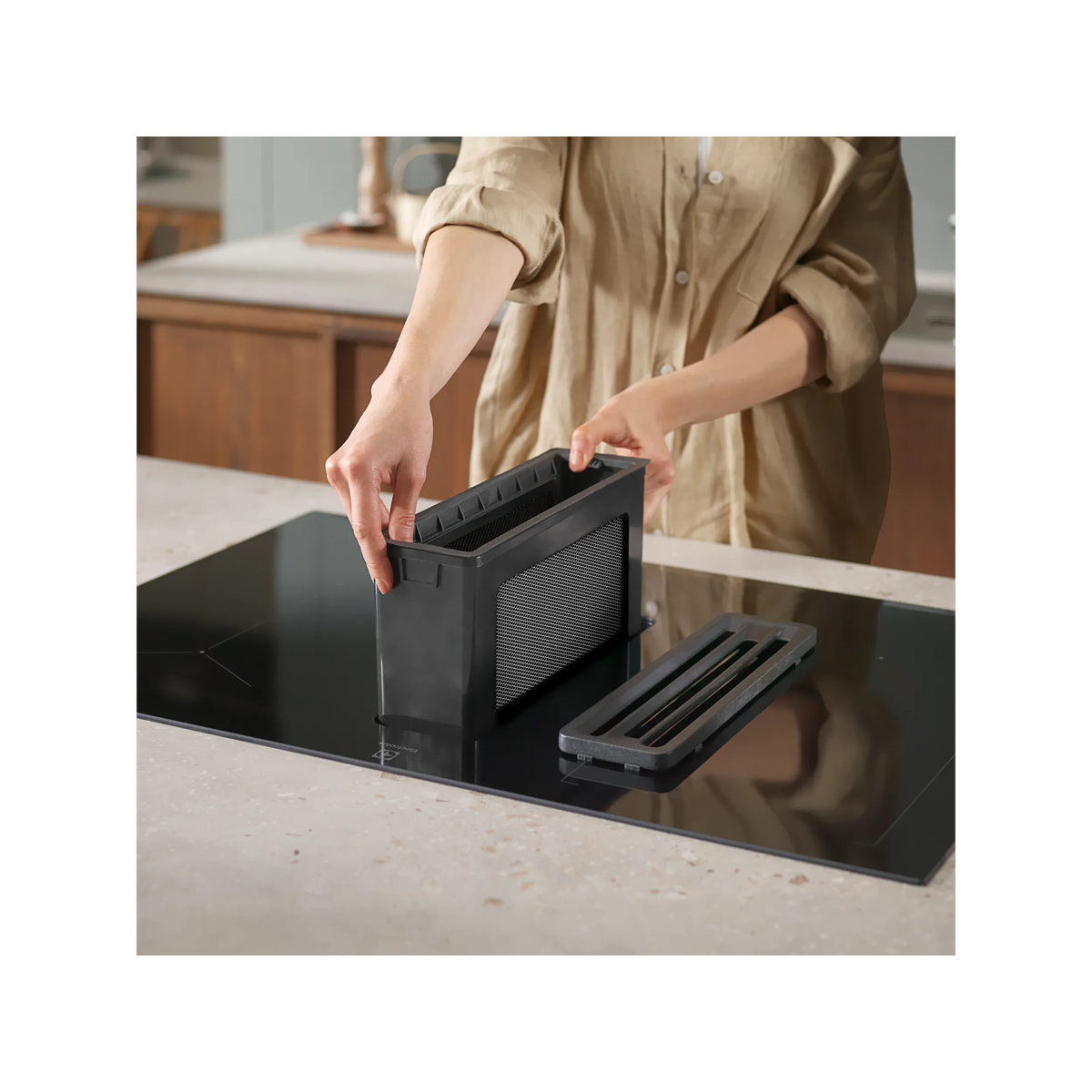

The 2-in-1 Filter for fresher kitchen air

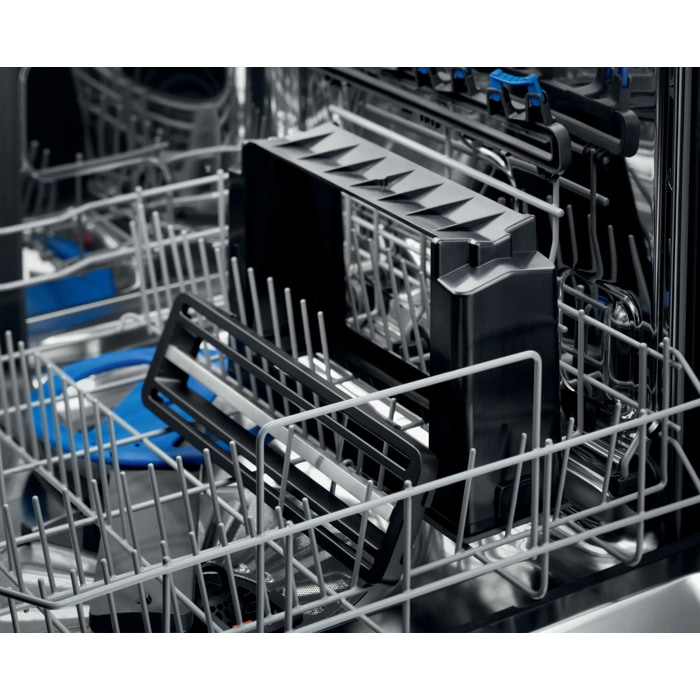

The 2-in-1 Filter includes both a charcoal and grease filter to help keep kitchen air fresh. The removable filter can be easily cleaned in the dishwasher and regenerated in the oven for prolonged use.

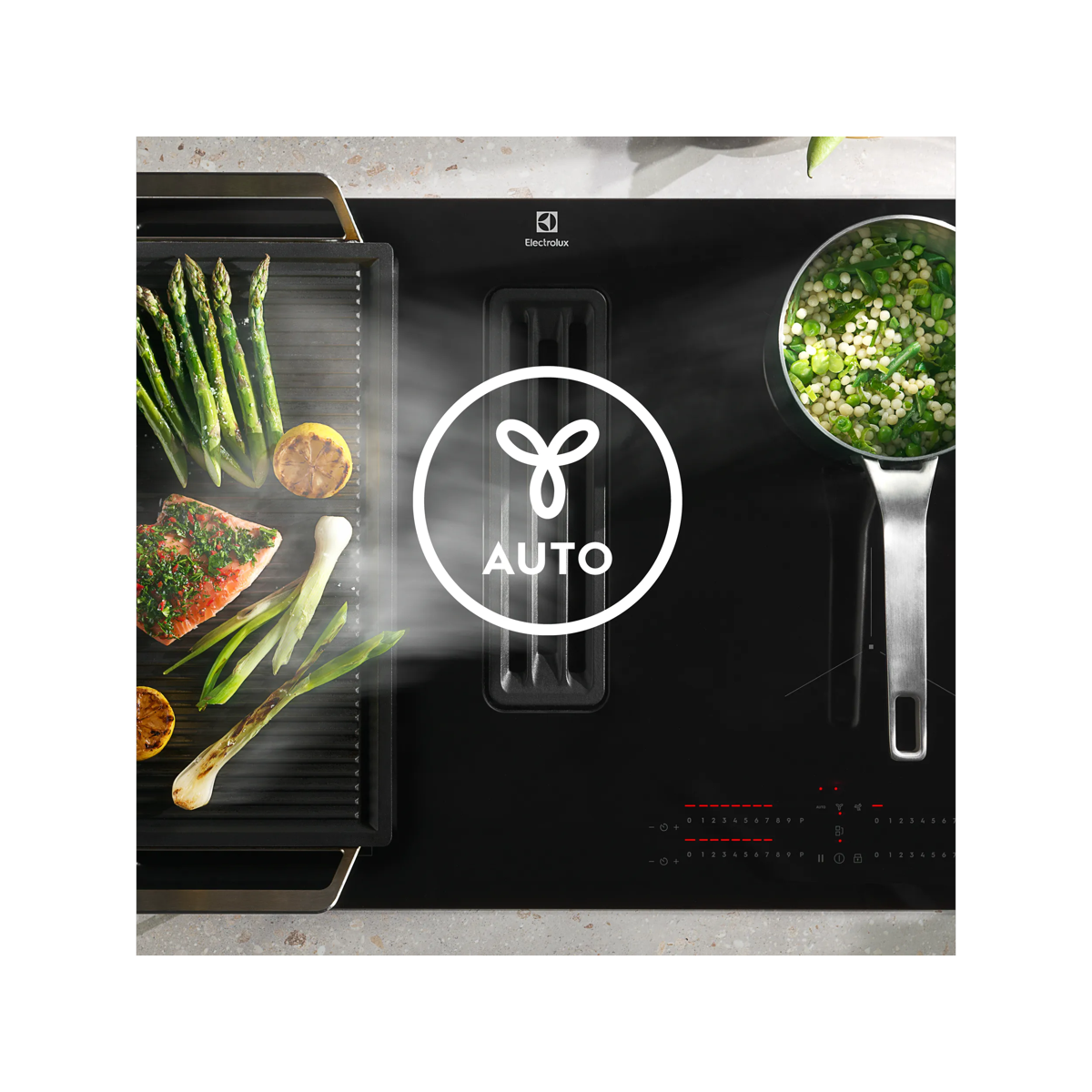

The extractor adjusts automatically with auto mode

Keep your mind on your cooking with an extractor that adjusts automatically as you raise or lower the power level. Auto mode extraction technology enables you to focus on your food while your hob and extractor seamlessly work for you.

Clean kitchen air quickly with the Boost function

Simply press the Boost function on the extractor for instant powerful extraction. It's activated for 10 min and efficiently cleans kitchen air from excess fumes and steam.
