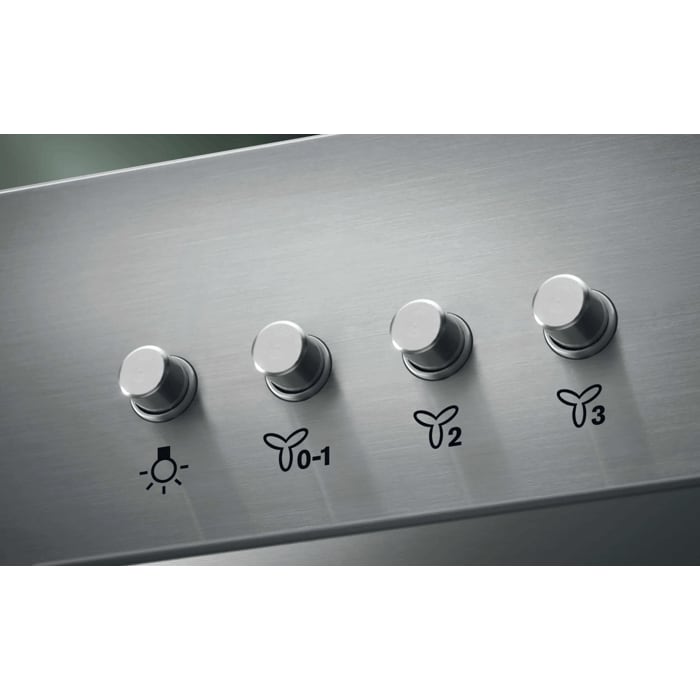

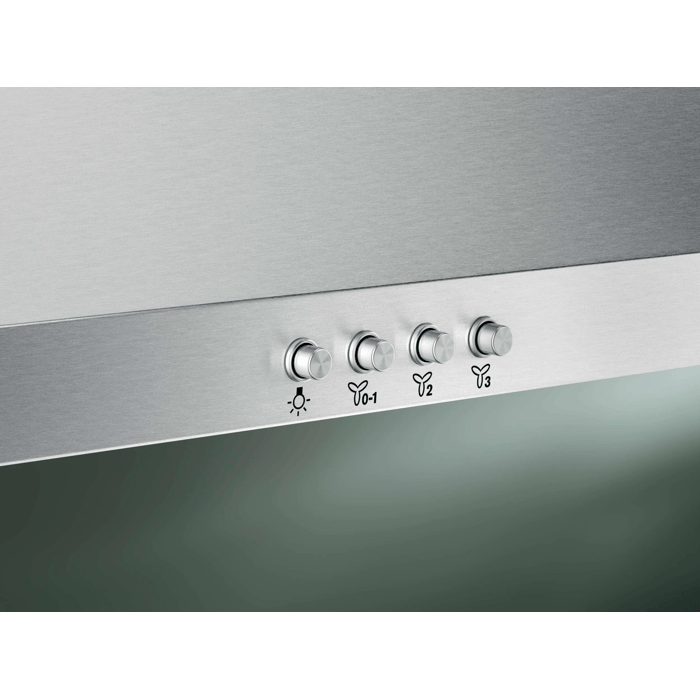

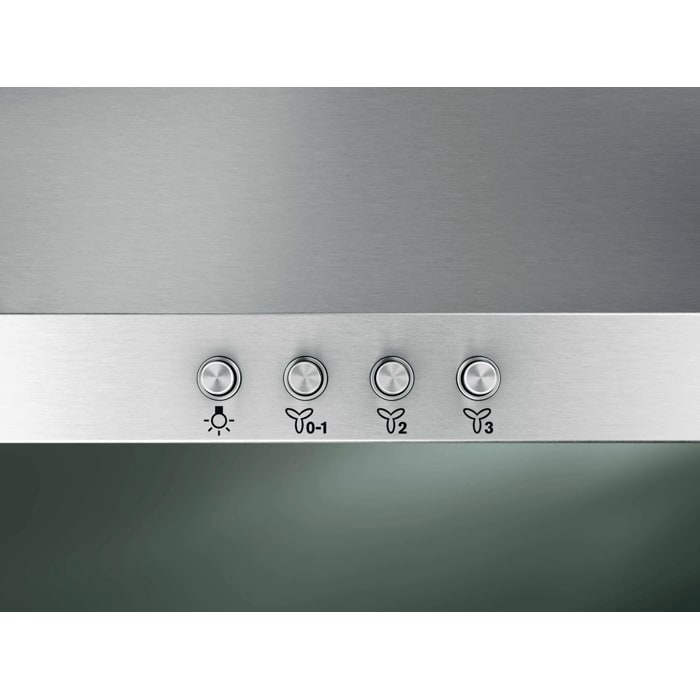

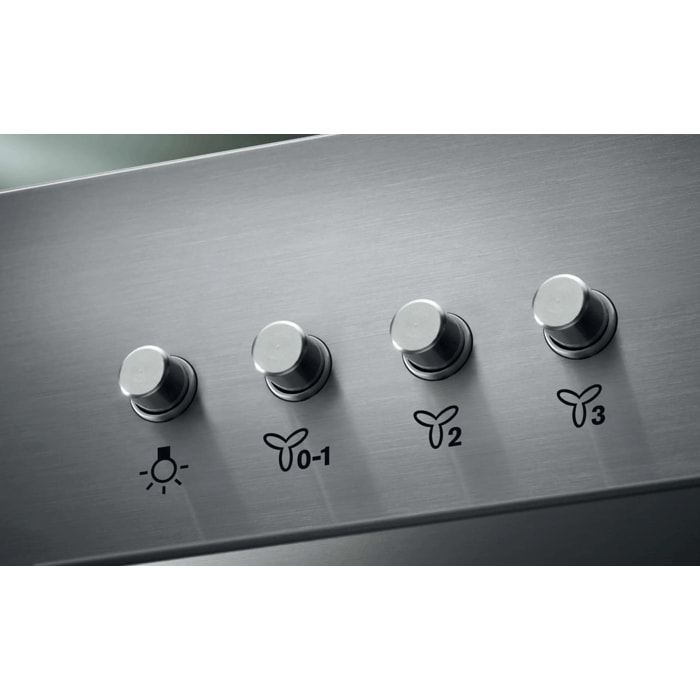

Hood settings, made simple
Your cooker hood functions can be easily reached with our mechanical controls. Adjust the light settings or the fan speed for fast, flexible cooking.

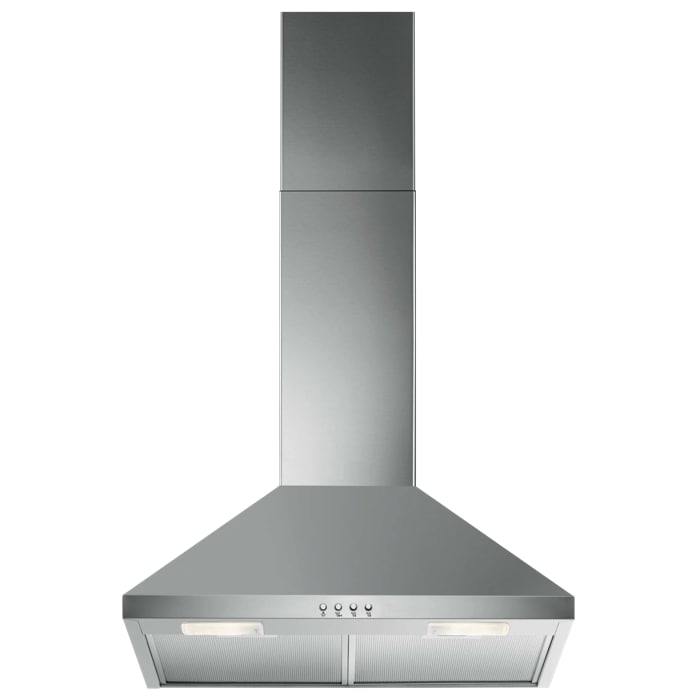

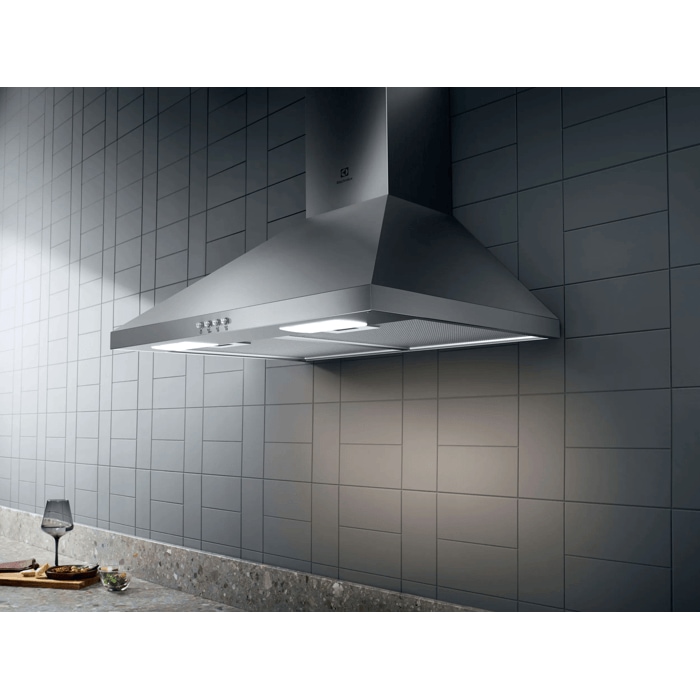

LFC316X Chimney hood
Our cooker hood mounts right into the wall to give you more space while matching your existing decor. Plus its powerful performance handles cooking odours and removes them without a fuss. Enjoy simpler mealtimes in an odour-free kitchen.
Available from:

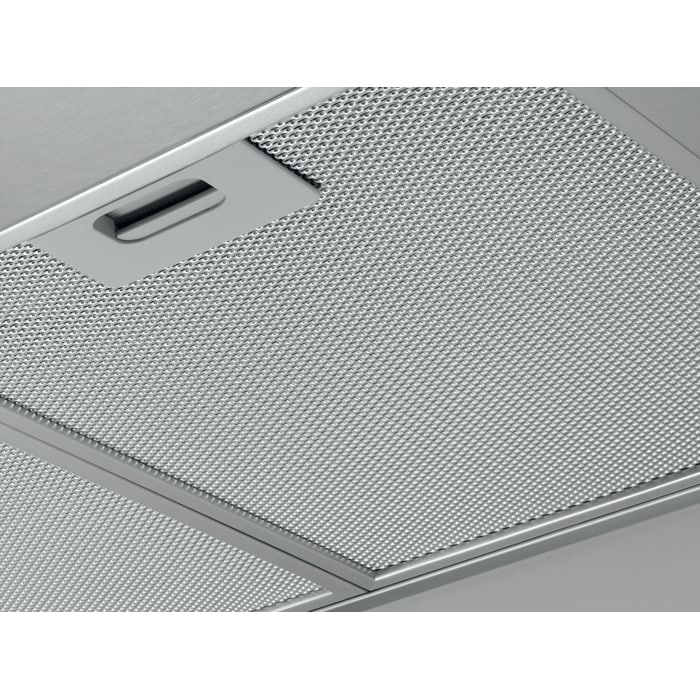

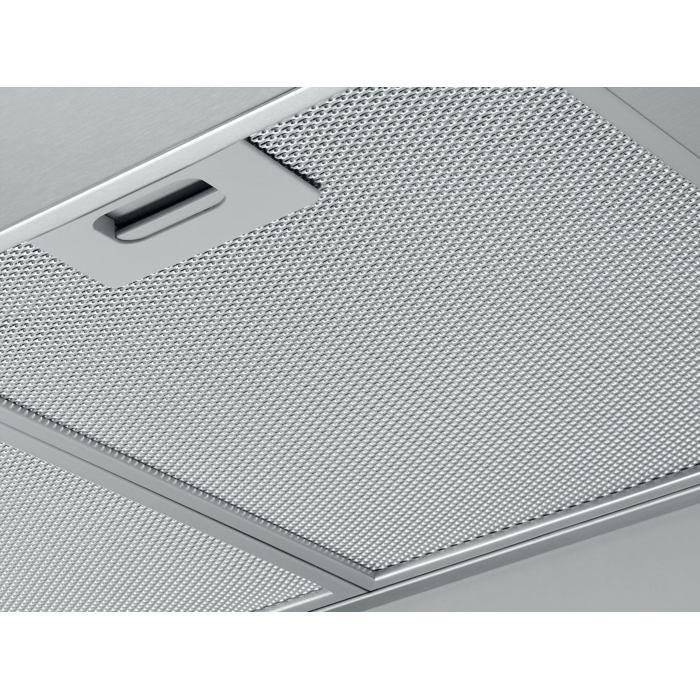

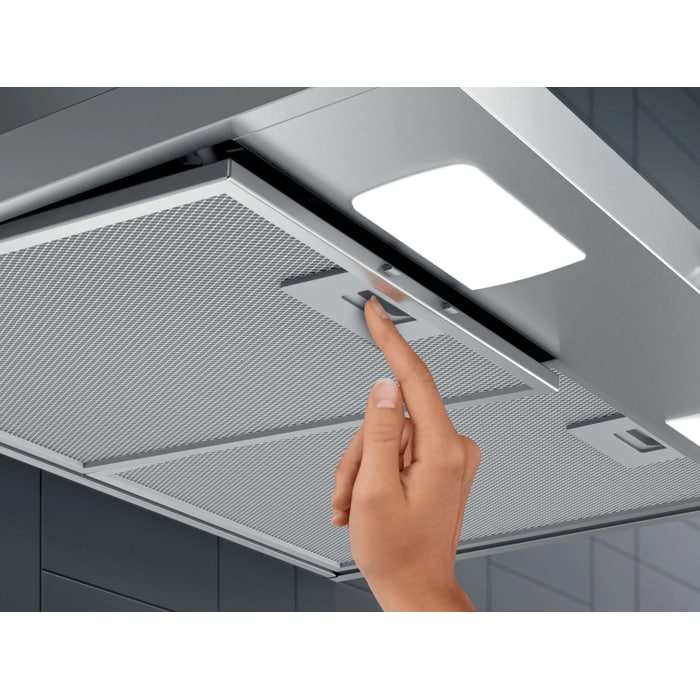

Clean filter, clean air.
This filter provides continually effective protection for your kitchen. And, because it's fully washable, it works to provide cleaner air in your kitchen for even longer.
Reliably reduces cooking fumes
Create a cleaner atmosphere for you to cook, eat and relax in with this efficient cooker hood. Its reliable motor effectively reduces cooking fumes so you can enjoy your time in the kitchen more than ever.
Tech specification
Installation diagram
- Installation: Chimney
- Size: 60
- Dimensions, HxWxD: 690-940x598x450
- Minimum distance from cooking top: 50
- Minimum distance from cooking top: 65
- Cord Length: 1.4
- Voltage: 220-240
Specification
- Push button controls with 3 speeds

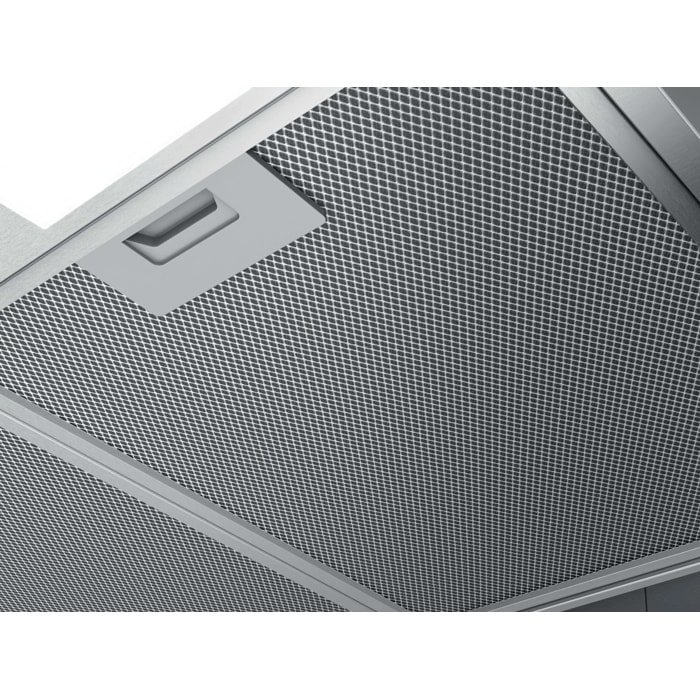

- Washable aluminium grease filters: The metal filter attracts the grease from cooking vapours, reducing odours, purifying the air and optimising performance. The filter is dishwasher safe and never needs replacing.
- Recirculation or extraction options
- Noise level: dB(A)
- For wall mounting between furniture or as a stand alone unit
Performance
- Fluid dynamic efficiency class: E
- Lighting efficiency class: E
- Capacity minimum, m3/h: 235
- Capacity, Max m³/h: 420
Installation
- Installation: Chimney
- Dimensions, HxWxD: 690-940x598x450
- Minimum distance from cooking top: 50
- Minimum distance from cooking top: 65
- Required Fuse: No
- Colour: Stainless steel
Energy
- Frequency: 50
- Energy class: D
- Grease filter efficiency class: D
- Sound power min speed, dB(A): 53
- Sound power max speed, dB(A): 66
- Recirc sound power min, dB(A): 60
- Recirc sound power max, dB(A): 73
- Recirculation min, m3/h: 175
- Recirculation max, m3/h: 245
Other
- PNC: 942 022 002
- Size: 60
- Cord Length: 1.4
- Voltage: 220-240
- Charcoal filter type: ECFB02
- Other comments technical specifications: max height is for exhausting mode. For recirculatory mode: max 990
- Superperforming charcoal filter compatible: NO, NO
- No. of speed settings: 3

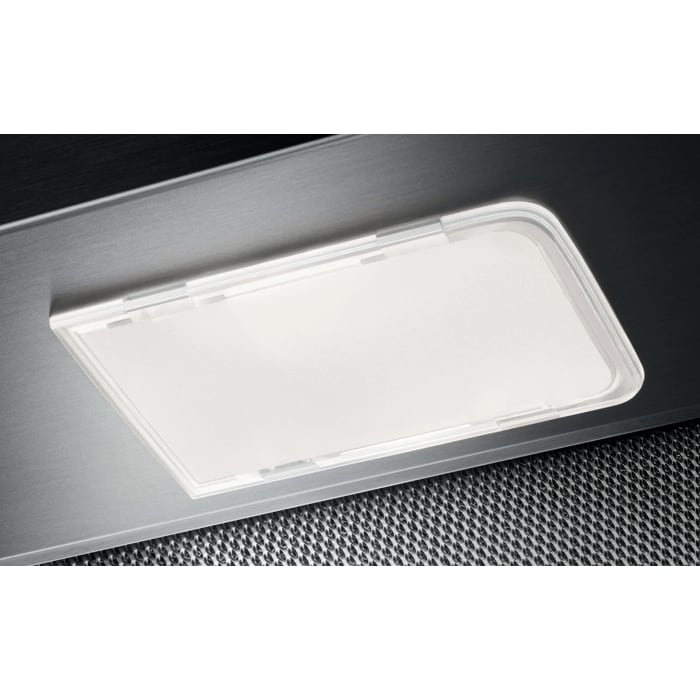

- Lamp type: LED bulb
- No. of lamps: 2
- Grease filters: 2
- Information for professionals about non-destructive disassembly according to Regulation EU 66/2014
