Hood settings, made simple
Your cooker hood functions can be easily reached with our mechanical controls. Adjust the light settings or the fan speed for fast, flexible cooking.
EFL396A Chimney hood

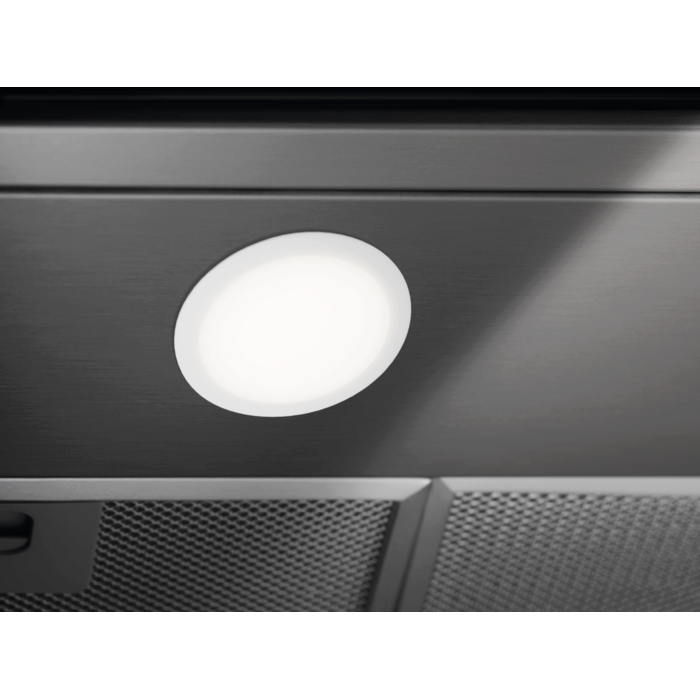

Energy-efficient LEDs are ideal for sociable areas like the kitchen, where lighting is used frequently and for long periods of time. Bright, long-lasting and incredibly energy-efficient, they're an essential feature in modern homes.
Clean filter, clean air.
This filter provides continually effective protection for your kitchen. And, because it's fully washable, it works to provide cleaner air in your kitchen for even longer.
Tech specification
Installation diagram
- Installation: Chimney
- Size: 60
- Dimensions, HxWxD: 665-1150x600x500
- Minimum distance from cooking top: 50
- Minimum distance from cooking top: 65
- Cord Length: 1.35
- Voltage: 220-240
Specification
- Push button controls with 3 speeds
- Washable aluminium grease filters: The metal filter attracts the grease from cooking vapours, reducing odours, purifying the air and optimising performance. The filter is dishwasher safe and never needs replacing.
- Recirculation or extraction options
- Noise level: dB(A)
- For wall mounting between furniture or as a stand alone unit
Performance
- Fluid dynamic efficiency class: E
- Lighting efficiency class: A
- Capacity minimum, m3/h: 250
- Capacity, Max m³/h: 400
Installation
- Installation: Chimney
- Dimensions, HxWxD: 665-1150x600x500
- Minimum distance from cooking top: 50
- Minimum distance from cooking top: 65
- Required Fuse: No
- Colour: Stainless steel
Energy
- Frequency: 50
- Energy class: D
- Grease filter efficiency class: C
- Sound power min speed, dB(A): 55
- Sound power max speed, dB(A): 67
- Recirc sound power min, dB(A): 61
- Recirc sound power max, dB(A): 65
- Recirculation min, m3/h: 175
- Recirculation max, m3/h: 245
Other
- Product number (PNC): 942 022 089
- Size: 60
- Cord Length: 1.35
- Voltage: 220-240
- Charcoal filter type: ECFB01
- Other comments technical specifications: EL data estimated
- Superperforming charcoal filter compatible: NO, NO
- No. of speed settings: 3
- Lamp type: LED spotlight
- No. of lamps: 2
- Grease filters: 2
- Chimney denomination: n/a
- Information for professionals about non-destructive disassembly according to Regulation EU 66/2014
