LFV316Y

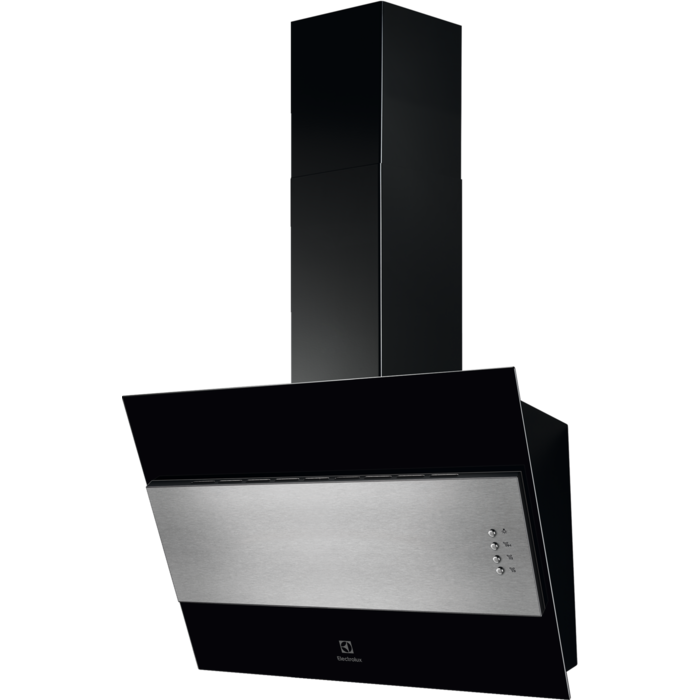

Black cooker hood

Name: LFV316Y
Brand: Electrolux
SKU: LFV316Y

Product details

Product information sheet

InstallationVertical Design Hood

Size (cm)60

Capacity, Max (m³/h)600.0

Noise Level, Max/Min (dB)66 / 49

Washable filter

Safety Warnings

Essential precautions to ensure safe usage and installation.

Specification

Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.
Aluminium grease filters: The metal filter captures grease, reducing odours, purifying the air, and enhancing performance. It's dishwasher-safe and never needs replacing.
Recirculation or extraction options
Installation Type: For wall mounting between furniture or as a stand alone unit

Performance

Number of Speed Settings: 3
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 290/600/-
Ducted Noise Level - Min/Max/Intensive (dB): 49/66/-
Light temperature, K: 3000
Number of Lights: 2
Hob2Hood Connection: No
Min Recirculated Extraction Rate (m³/h): 240
Max Recirculated Extraction Rate (m³/h): 385
Min Recirculated Noise Level (dB): 63
Max Recirculated Noise Level (dB): 75
Number of Grease Filters: 1
Grease Filter Type: Aluminium mesh

Installation

Minimum Distance from Electric Hob (cm): 50
Minimum Distance from Gas Hob (cm): 65
Size (cm): 60
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): Yes
Net Weight: 14
Gross Weight (Kg): 19.36
Dimensions (mm) (HxWxD): 1260x598x176
Installation: Chimney
Cord Length (m): 1.2
Air Outlet (mm): 150
Voltage (V): 220-240
Recommended fuse (A): No

Energy

Energy Rating: C
Grease Filter Efficiency Rating: D
Annual Energy Consumption (kWh): 95.6
Fluid Dynamic Efficiency Rating: D
Lighting Efficiency Rating: A

Other

Product number (PNC): 942 051 503
Main Colour: Black
Control Type: Mechanical push buttons
Lamp Type: LED spotlight
Bar Code: 7333394051550
Charcoal Filter: Accessory
Charcoal Filter Type: ECFB02ST
Long Life Filter Type: MCFB52PL
Super Performing Filter Type: NO
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Product details

The 500 ExtractionTech Plus cooker hood offers fast and thorough kitchen air cleaning with its powerful motor. Effortlessly eliminate even the strongest cooking odours for a completely fresh environment every time you cook.

Electrolux - Black cooker hood - LFV316Y

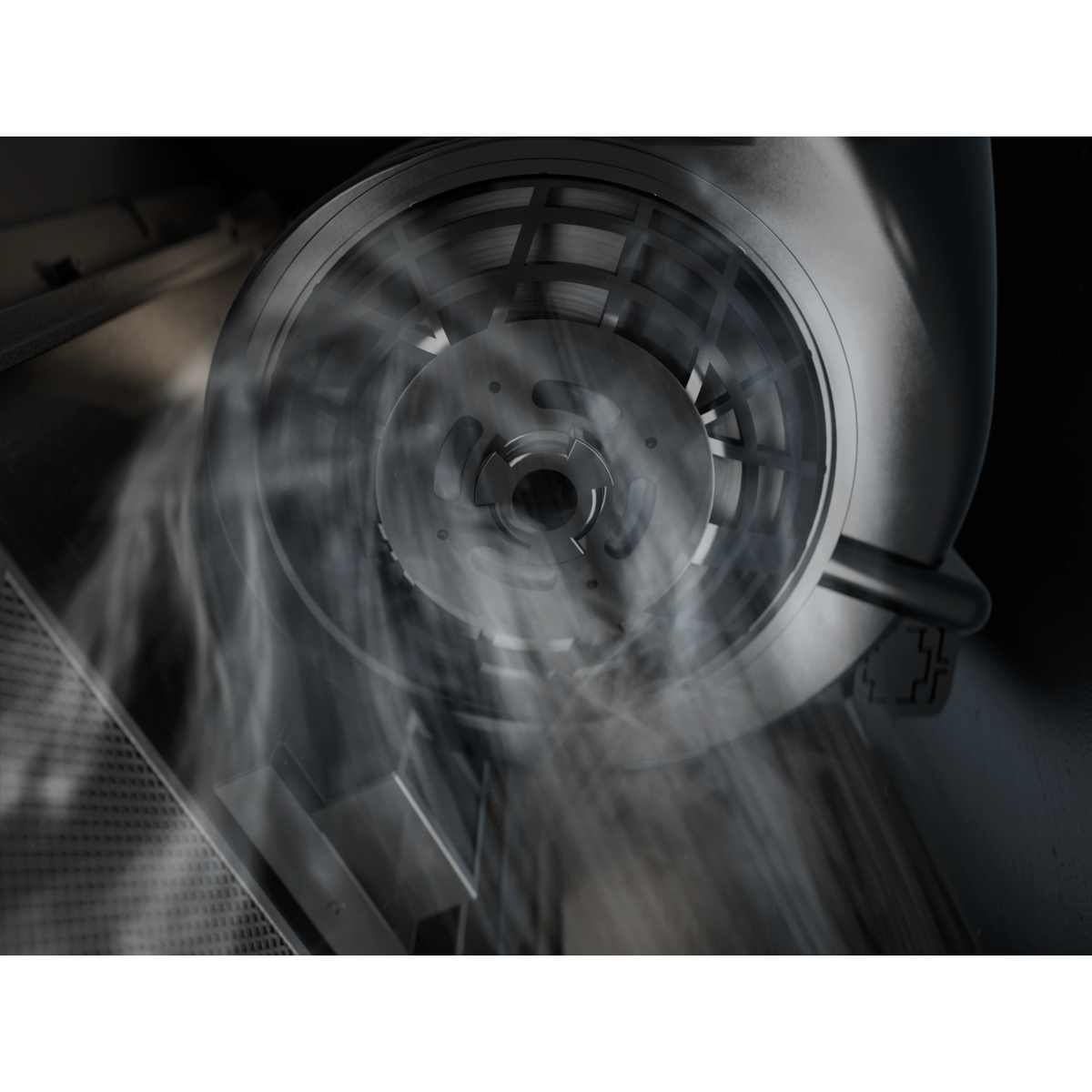

ExtractionTech Plus. High-performance odour extraction

ExtractionTech Plus ensures your kitchen stays fresh and clean every time you cook. The high-performance motor thoroughly cleans the air and removes odours for a better cooking environment.

Light up your cooking with Pure Illumination

Our Pure Illumination provides intense and durable lighting for full visibility while cooking. The energy-efficient LED lights illuminate your entire cooking surface, making it easy to see every detail of your meal preparation.

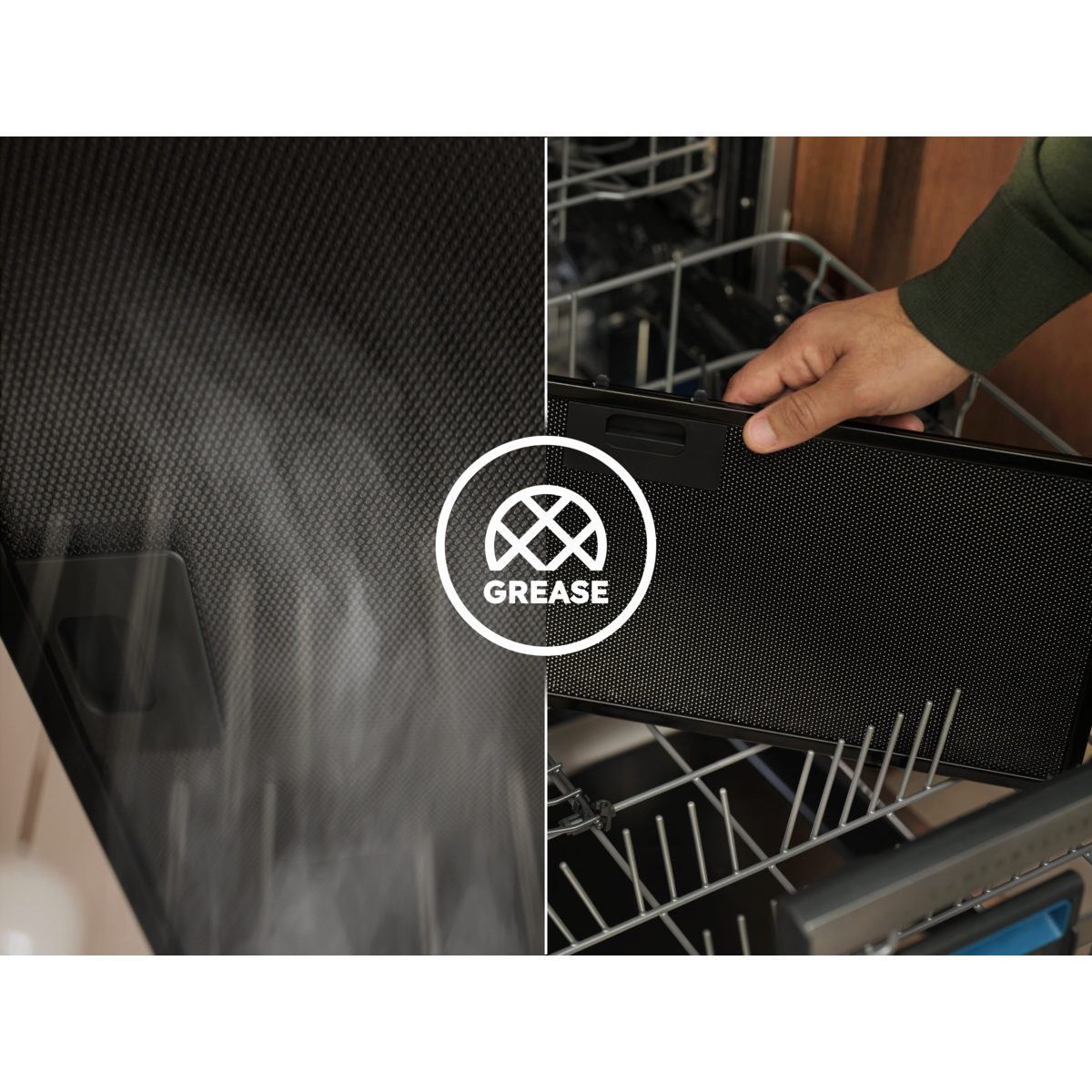

Grease filter with reliable performance

Experience reliable grease filtering. Designed for convenience, it can be easily cleaned by hand or in the dishwasher, ensuring your kitchen stays fresh and your hood performs at its best.
