• Range -
  • Place Settings 13
  • Energy Class E
  • Noise Level (Db) 49

Tech specification

Installation diagram
  • Installation: Fully integrated
  • Dimensions (mm) (HxWxD): 818x596x550
  • Dimensions_Dishwasher_FSBU_DK: 820-880x600x550
  • Double Hinges: Sliding
  • Water Supply: Cold or hot
  • Cord Length: 1.5
  • Inlet hose length (mm): 150
Specification

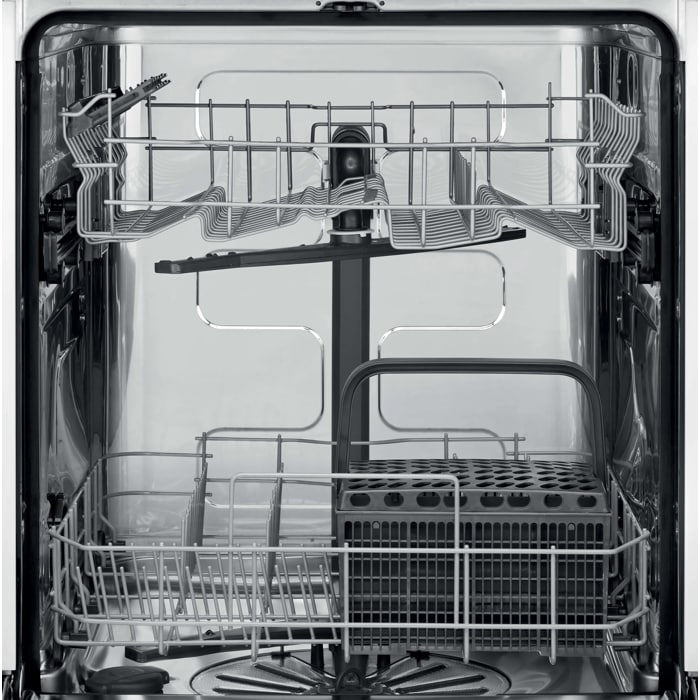

  • Height adjustable upper basket: Provides more flexibility as bigger items can be loaded in the lower basket by raising the upper basket on one side, even if the basket is loaded.
  • 5 programmes, 3 temperatures
  • 49 dB(A) noise level - quiet in operation
  • 3 hours delay start
  • 9.9 litres - more economical than washing by hand
Performance
  • Drying System: AirDry Technology
Installation
  • Installation: Fully integrated
  • Dimensions (mm) (HxWxD): 818x596x550
  • Dimensions_Dishwasher_FSBU_DK: 820-880x600x550
  • Water Supply: Cold or hot
  • Inlet hose length (mm): 150
  • Outlet hose length (mm): 150
  • Wheels/feet: 2 adj feet + 1 front adj rear foot, Adj 0 to 8 cm
  • Required Fuse: 10
  • Inlet Pipe Type: Aqua control
Energy
  • Connected Load: 1950
  • Frequency: 50
Other
  • Product number (PNC): 911 539 282
  • Double Hinges: Sliding
  • Cord Length: 1.5
  • Voltage: 220-240
  • Number of programmes: 5
  • Number of Temperatures: 3
  • Door Colour: None
  • Anti-flood Device: Floating switch

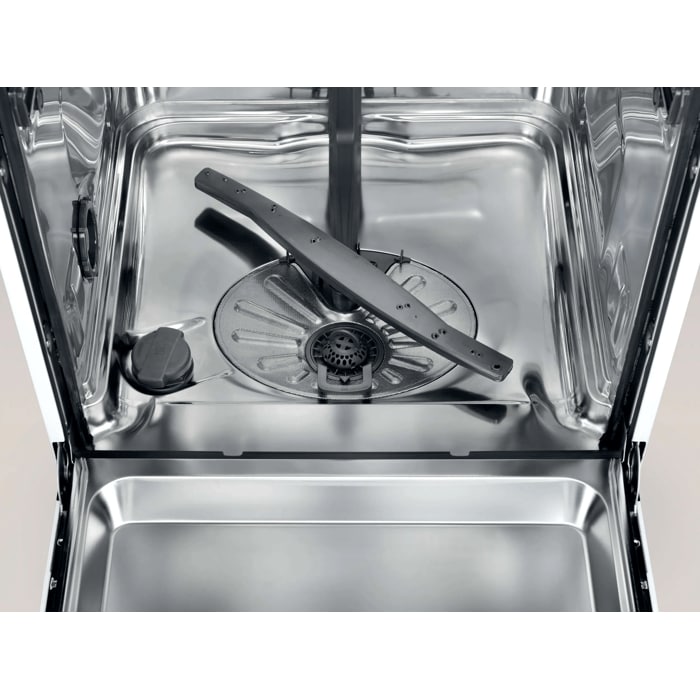

  • Spray arm: Standard
  • Top spraing level: None
  • Options: None
  • Dishwasher programs: 160 Minutes, 90 Minutes, ECO, Quick 30 Minutes, Rinse & Hold
  • Airborne acoustical noise emissions (EU 2017/1369): 49
  • Maximum number of place settings (EU 2017/1369): 13
  • Energy Efficiency Class (Regulation (EU) 2017/1369): E
  • Cleaning performance index (EU 2017/1369): 1.13
  • Drying performance index (EU 2017/1369): 1.07
  • Weighted energy consumption in kWh per 100 washing cycles of eco 40-60 programme (EU 2017/1369): 94
  • The water consumption of the eco programme in liters per cycle (EU 2017/1369): 9.9

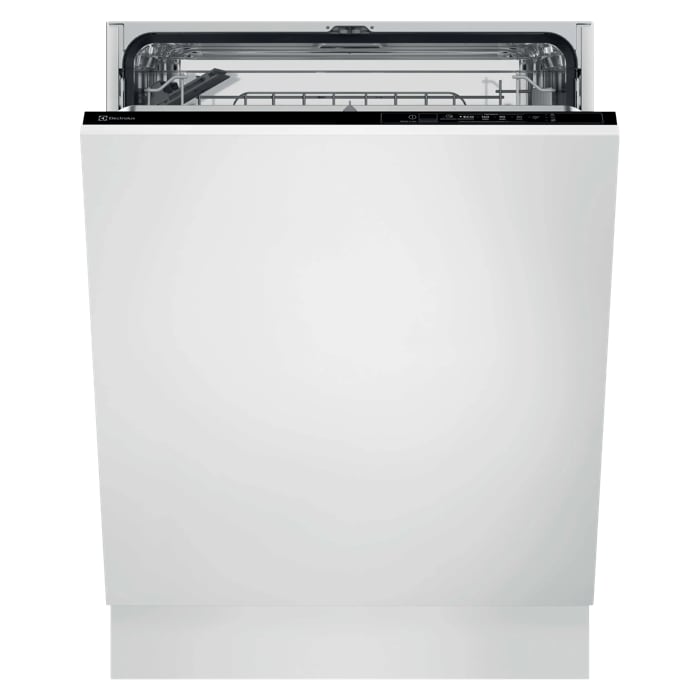

Integrated dishwasher KEAF7200L

Electrolux - Integrated dishwasher - KEAF7200L

Three-times better drying with AirDry

The new AirDry technology uses natural airflow to finish drying, for up to three-times better performance compared to closed-door systems. The door opens 10cm towards the end of the cycle, letting air circulate for superb drying results.

Quick and efficient

Your new time saver. When you have a light load, our 30-minute quick wash programme offers the perfect solution. And all without compromising on results. For the perfect washing result - fast.

Electrolux - Integrated dishwasher - KEAF7200L

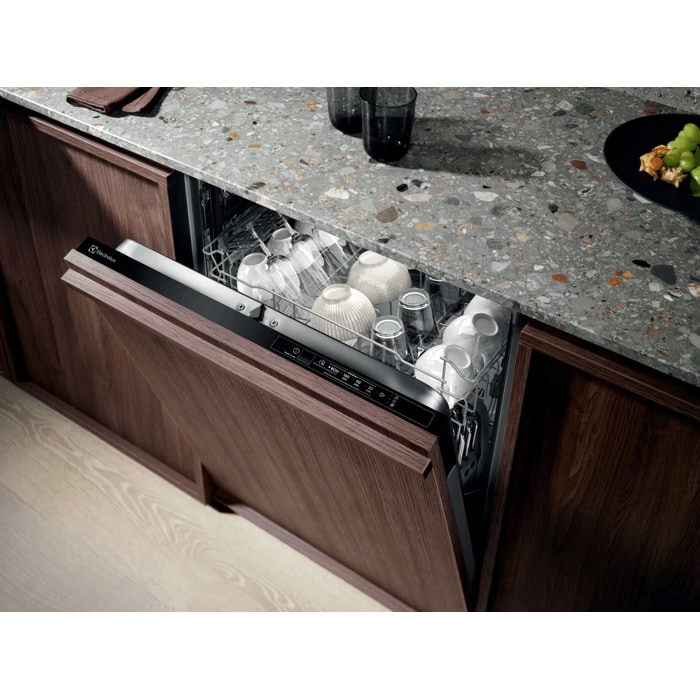

Easy installation, PerfectFit

With PerfectFit Sliding Hinges, it’s never been easier to install your new dishwasher. The hinges accommodate all niche machine heights and even remove the need to cut the plinth. You can be confident that your machine will fit into your kitchen perfectly.
